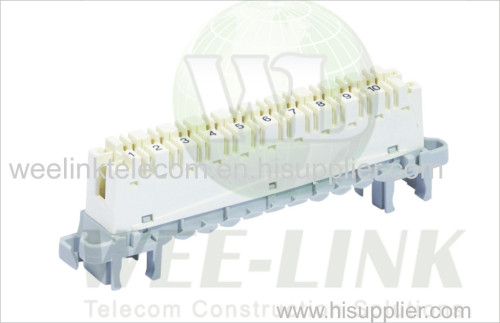

krone module LSA Krone 10 Pairs Disconnection Module from China manufacturer

Product Detail

Means of Transport: Ocean,Land,Air

Packing: carton box

Brand Name: WLK

Production Capacity: 10000pcs per week

Delivery Date: 1-3DAYS

1 . Material: Housing-ABS UL94V-2
Base-ABS UL94V-2
Contact -0.5mm thickness
Phosphor bronze plating over nickel over silve

1: Environment condition: -5-40 degree Celsius Relative humidity<85% (+30 degree Celsius) Atmospheric pressure: 70-106KPa

2: The modules are compatible with KRONE LSA-PLUS modules.

3: Size (H x W x D): 124mm x 21mm x 40 mm (10 Pairs)

4: Pulling-out force: tin bronze and silver plating (20uinch), pulling-out force not less than 25N

5: Internal diameter of connection wire: 0.4-0.65 mm

6: The performance of anti-burn: PBT UL94V-0or anti-burn ABS UL94V-0,Combustibility

7: Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections

8: Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition

9: Intermediate resistance: no more than 3m ohm under standard examination condition

10: Dielectric strength: according to industry standard
